Field Due to Point Charges
Demo 4.3:
Square with Four Identical Charges
Given:

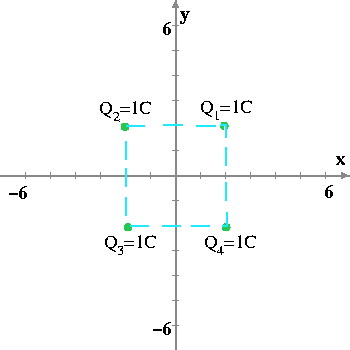

Identical charges of 1C each are located on the four corners of a square, as shown.
In this demo, arrows are used to sketch the electric field pattern in the
x-y
plane.
to display the graphical and analytical solution.
Note: Color intensity is proportional to the strength of the Electric field.
Proceed to Demo 4.4
